Universal Render Pipeline

Project Status: Finished
Project Type: Specialization
Software Used: Unity 2022.3
Languages: C#, CG, HLSL
Duration: 8 weeks
Team: Solo

About Project

During my 'Verdieping Software' elective at Neon Origins, I explored URP and shader programming. Contributing directly to the studio project Operation Starfall through shader R&D and post-processing experiments. Github

Resources

Highlights

  • Custom Post-Processing System
  • Chromatic Aberration Shaders

Intro

The project began from an Userstory along the lines of "I want the game to feel like watching a 80s NTSC TV." This became my starting point for learning post-processing, experimenting with ShaderGraph, and studying shader fundamentals.

Slide 4 of presentation

Development

Implemented a Tint Renderer Feature with custom volume overrides. This allowed designers to tint the entire screen with adjustable strength.

Code Snippet: Tint Renderer

Code Snippet: TintPass

Here you see the injection of the 'Pass' into the Graphics Pipeline.

Code Snippet: Volume override

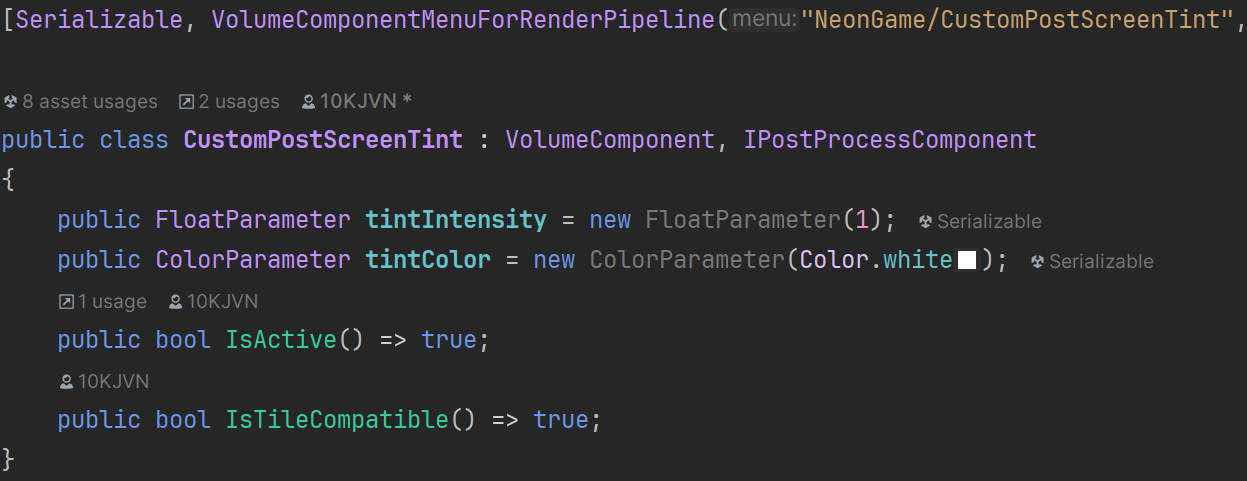

Code Snippet: CustomPostScreenTint

Accessible tint intensity & color in the Unity inspector.


Built a fullscreen chromatic aberration effect simulating RGB channel separation. This started by experimenting in UV space at first. Eventually evolving into a full post-processing pass with tweakable intensity.

ShaderGraph prototype: RGB channel offset per object.

RGB offset effect
Fullscreen chromatic aberration

Fullscreen effect: RGB channels split across the entire screen with customizable offset.


Exploration

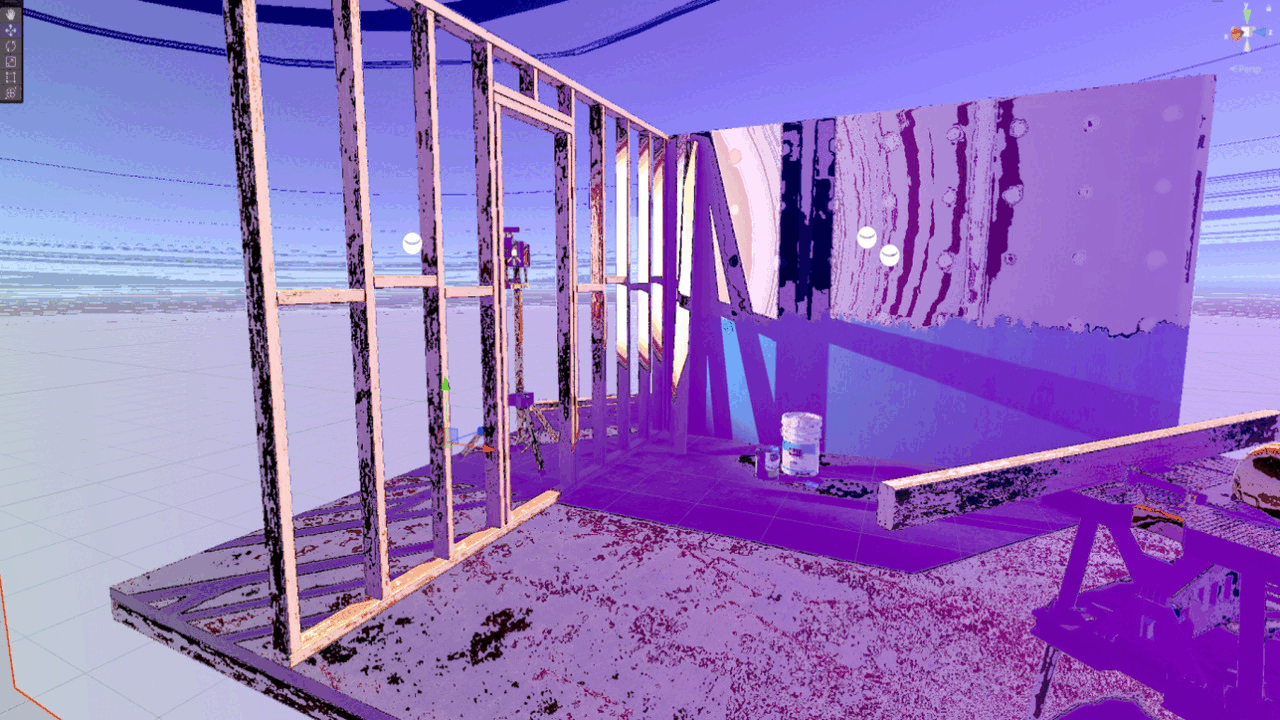

After delivering the core features, I continued exploring shader techniques. Color Bleeding via blurred offsets, Depth Testing using normalized values, Multipass rendering, and Color Spaces. Manually converting between RGB and YUV.

Still need to create GIF of these.

Most of these resulted in glitchy, trippy visuals — but each experiment revealed something new about the rendering pipeline.


Shader Curiosity

Outside Unity, I studied shader languages and pipelines. Explored CG, HLSL and GLSL, learned how ShaderLab structures SubShaders, Passes and HLSL includes. Collected notes on shader stages (vertex, fragment, geometry, etc.), realizing I was only scratching the surface.

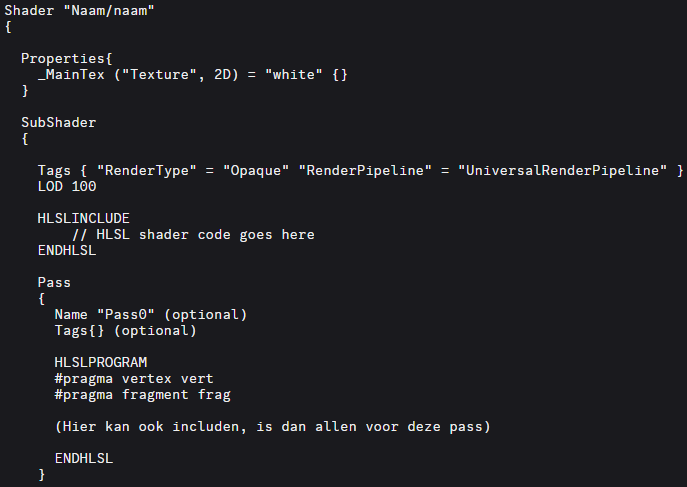

A screenshot sample of my beginner template on writing shaders.

This exploration gave me the foundation to move from node-based workflows into handwritten shaders — a skill I now apply across graphics projects.


Results

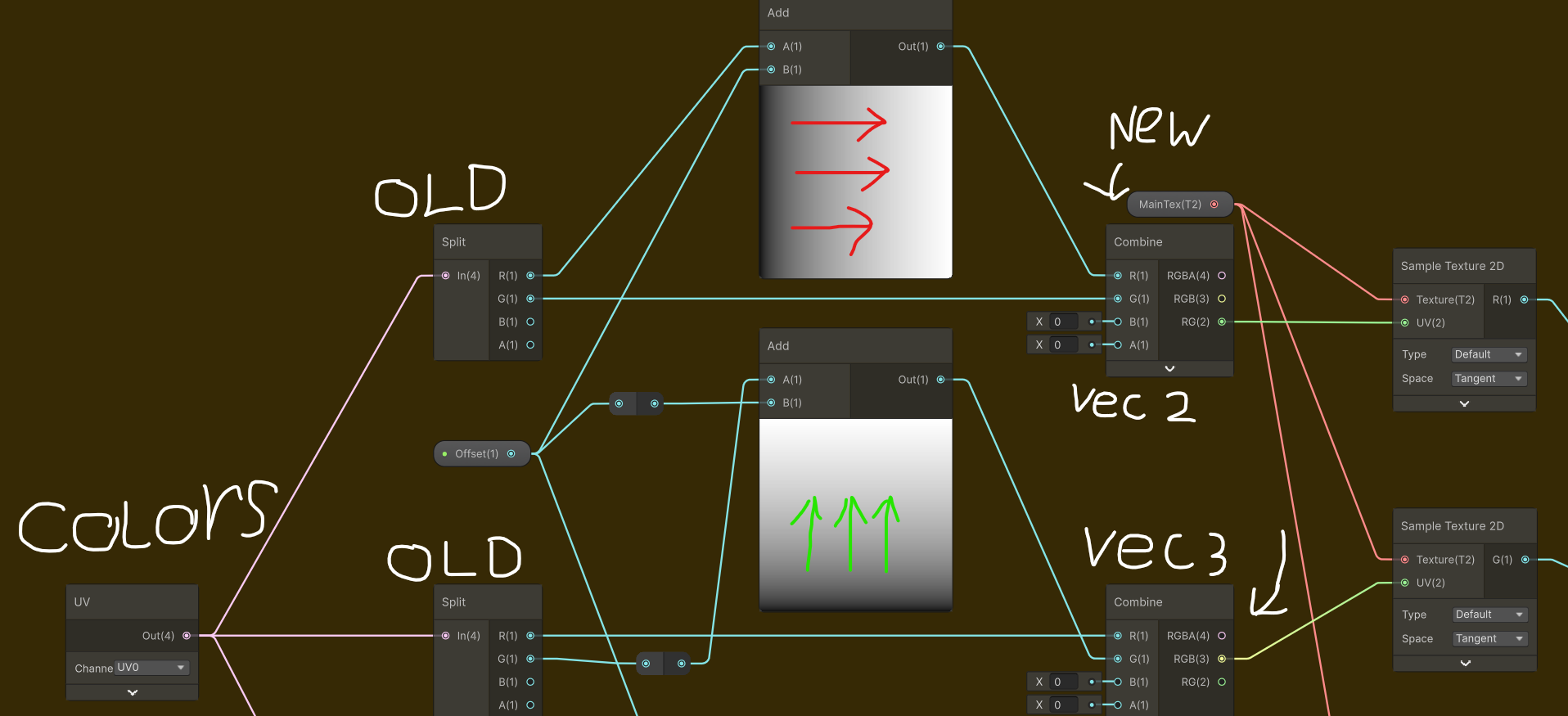

UV-Space Chromatic Aberration

Localized UV-space chromatic aberration prototype.

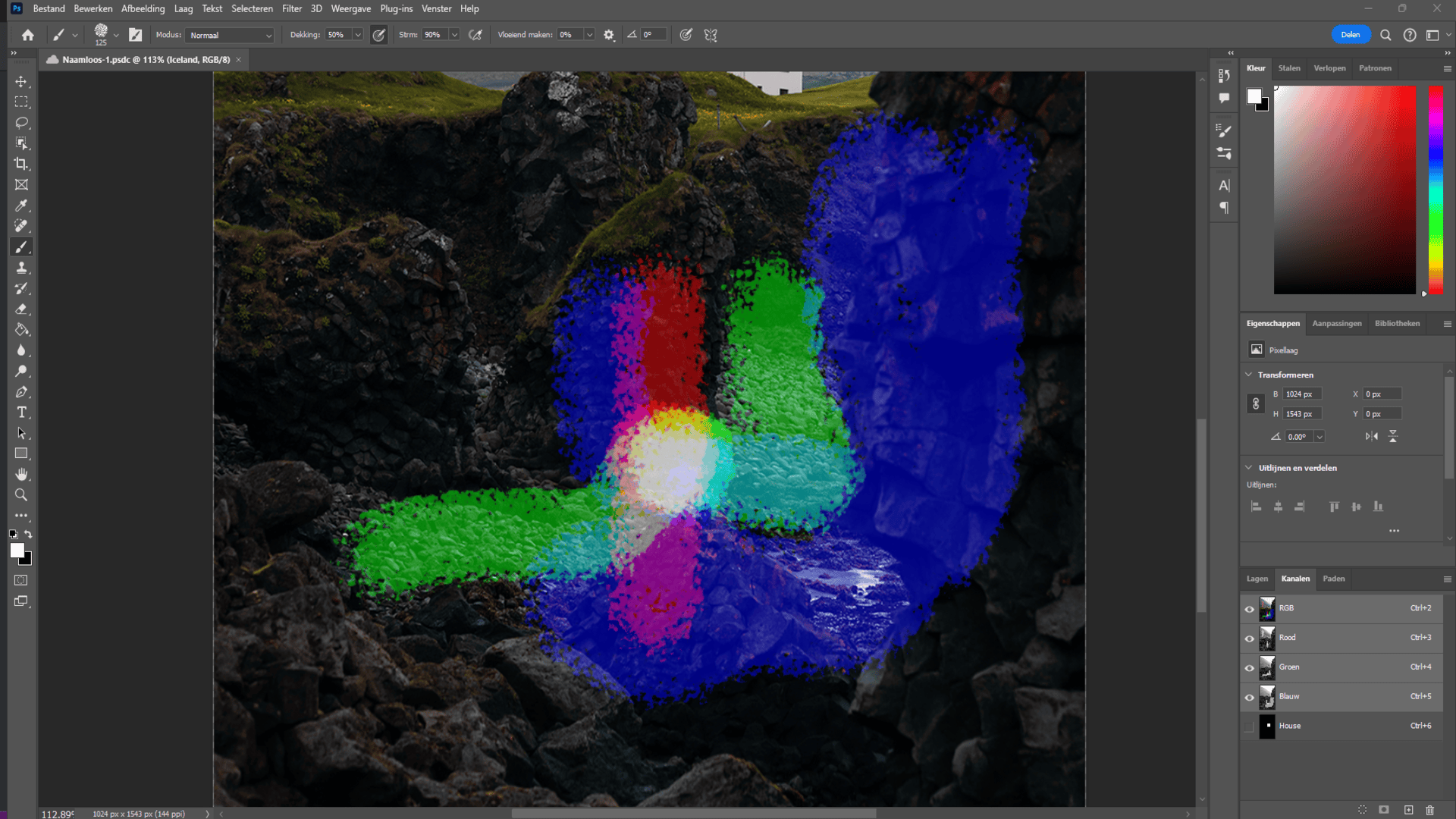

Illustration of RGB blending with directional arrows

Illustration of additive RGB blending in Photoshop.
Red and green combine as expected — but blue remains a mystery?


Takeaway

This project was a turning point where I delivered two production-ready URP features. Gained practical experience with post-processing, custom renderer features and ShaderGraph. Built shader programming fundamentals that continue to shape my path.

It showed me how shader math, rendering theory and artistic direction come together — and confirmed I wanted to keep exploring the technical art side of game development.

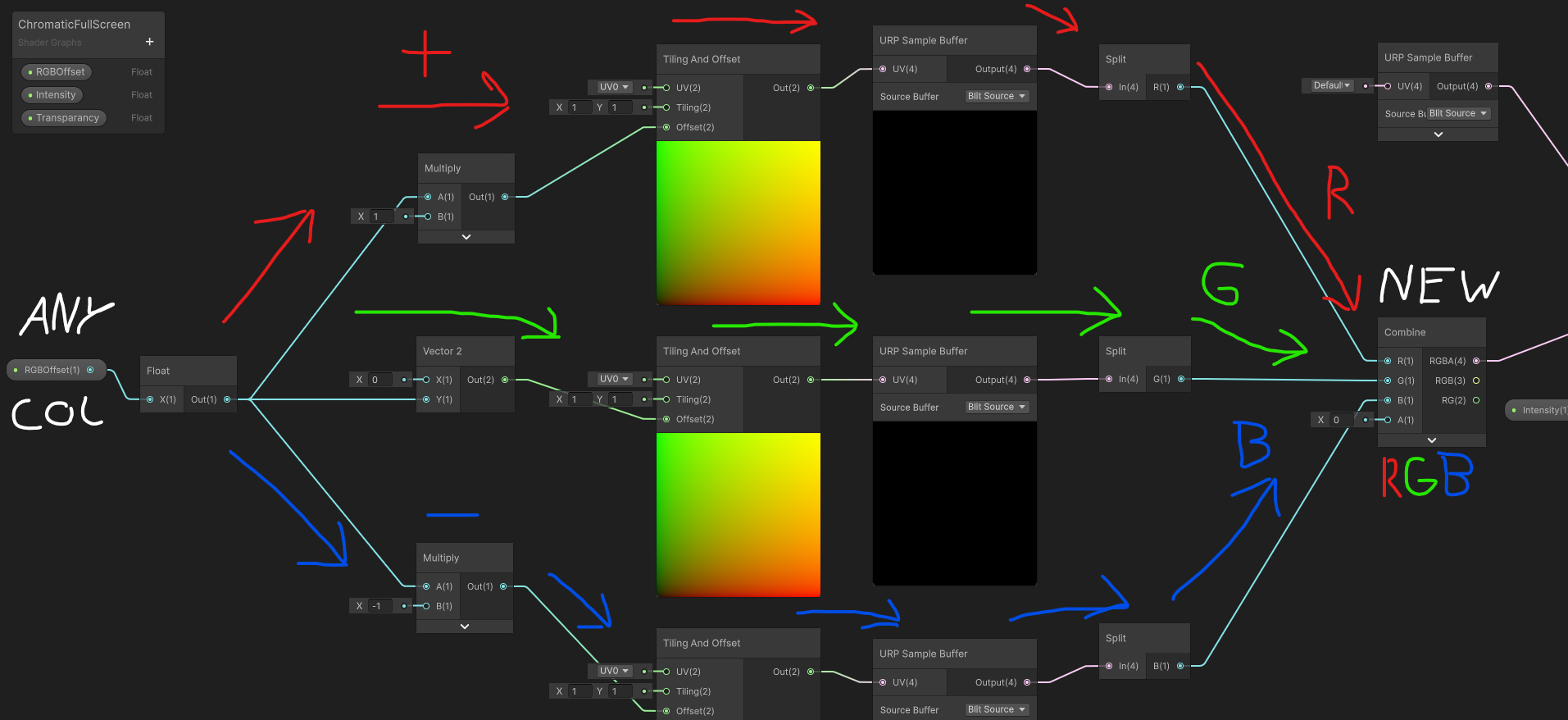

Fullscreen Chromatic Aberration

Final fullscreen chromatic aberration effect. Annotated shader logic reveals how RGB channels were offset and recombined into a production-ready feature.



Resources

⬆ Back to Intro

Unity URP 14.0.X Documentation:
Official URP Manual

Making a Chromatic Aberration Shader (YouTube Short):
Video Tutorial

A Review of Shader Languages (Blog):
Article by Alain Galvan

Specialization Pitch Presentation:
My original kickoff presentation.

NeoN Game Studio Logo (mentor reference):

NeoN Game Studio logo with visible chromatic aberration.

Chromatic aberration applied directly onto a 4K logo for study reference.
